Vacuum Induction Graphitization Furnace For Carbonization High Temperature Degreasing

Name: Vacuum Induction Graphitization Furnace For Carbonization High Temperature Degreasing
Brand: Jingtan
Price: 8 USD

Certification : CE, ISO, Patents

Price : USD8,000-60,000/SET

Brand Name : Jingtan

Place of Origin : China

MOQ : 1 set

Delivery Time : 60 days

Packaging Details : wooden case

Payment Terms : L/C/T/T

Supply Ability : 10pcs/month

Temperature Range : 1000-3000°C

Heating Zone : Single

Temperature Uniformity : ±10 ℃

Furnace Size : Customizable

Display : Touch screen

Heating Element : Graphite

Gas Inlet : Argon

Control System : PLC

Working Temperature : 3000℃

Material : Stainless steel

Contact Now

Jingtan Vacuum induction graphitization Furnace for carbonization,graphitization,high temperature degreasing

Products Description

Integrated graphitization furnace:

1. Specially launched for the new carbon material industry.

2. It is a high-performance intelligent heating furnace specially for university laboratories, scientific research institutes and
enterprises and institutions.

3. Suitable for high temperature treatment of materials (carbonization, graphitization, high temperature degreasing, impurity
removal, etc.) under vacuum or gas protection.

Ultimate temperature	≤3200℃
Common temperature	Normal Temperature-3000℃
High Temperature Zone Volume	Φ100150,Φ200300,Φ300*500
Working Atmosphere in furnace	Vacuum, hydrogen, nitrogen, inert gas, etc
Temperature Uniformity	≤±10℃
Temperature Measurement	Far infrared optical temperature measurement (double connector automatic switch)
Temperature Measurement Accuracy	0.2~0.75%
Temperature Control	Program control and manual control
Temperature Control Accuracy	±1℃
Limit Heating Rate	200℃/min (empty furnace, depending on the volume of high temperature zone and furnace structure)
Power supply	IGBT control, thyristor control

Application:

It is used in carbon materials (products), carbon/carbon composites, synthetic graphene films, heat conduction materials, high temperature treatment and graphitization of graphene, carbon fiber rope, sintered graphitization of carbon fiber and other materials that can be sintered and melted in carbon environment.

Characteristic:

To reach the limit temperature of 3200℃, the common temperature of 3000℃ high temperature furnace, meet the sintering and graphitization of various materials.

Using digital display intelligent temperature control system, automatic, high precision to complete the temperature measurement and temperature control process, the system can be heated according to the given temperature curve, and can store 40 sections of a total of 200 different process heating curves.

Adopt internal circulation pure water cooling system; Digital flow monitoring system.

Comprehensive PLC water, electricity, gas automatic control and protection system.

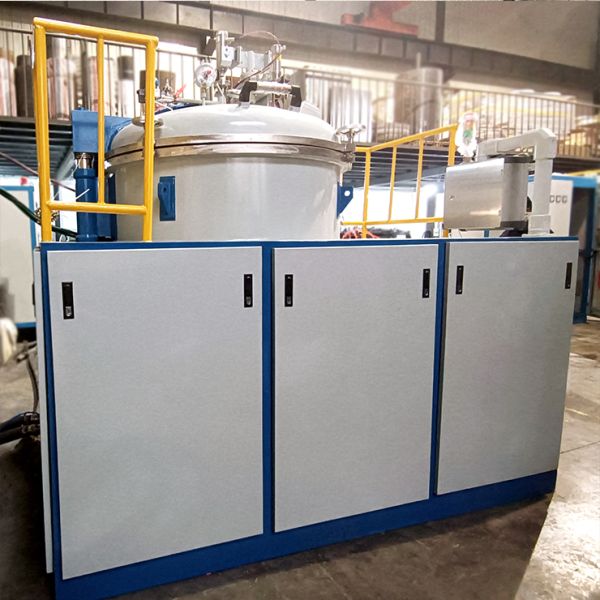

Vacuum Induction Graphitization Furnace For Carbonization High Temperature Degreasing

Advantage 1:

To reach the limit temperature of 3200℃, the common temperature of 3000℃ high temperature furnace, meet the sintering and graphitization of various materials.Comprehensive PLC water, electricity, gas automatic control and protection system.

Advantage 2:

Company Profile

Hunan Jingtan Automation Equipment Co., LTD is a professional engaged in high-temperature thermal equipment research, production and sales in the integration of high-tech enterprises, the main products are vacuum sintering furnace, pressureless sintering furnace, high temperature graphitization furnace, vapor deposition furnace, high temperature continuous furnace, vacuum carbonization furnace, vacuum hot-pressing furnace, vacuum induction melting furnace and direct resistance heating equipment, etc.
My company production equipment widely used in aerospace, electronics, transportation, machinery, metallurgy, hard alloy,refractory metal, special ceramics, carbon carbon composite materials, semiconductor materials and solar cells and so on dozens of processing and manufacturing industries and fields, and with high quality products, perfect service to win the majority of users trust and praise. Our company is a famous thermal equipment manufacturer in China, with perfect management system and stable and reliable products.

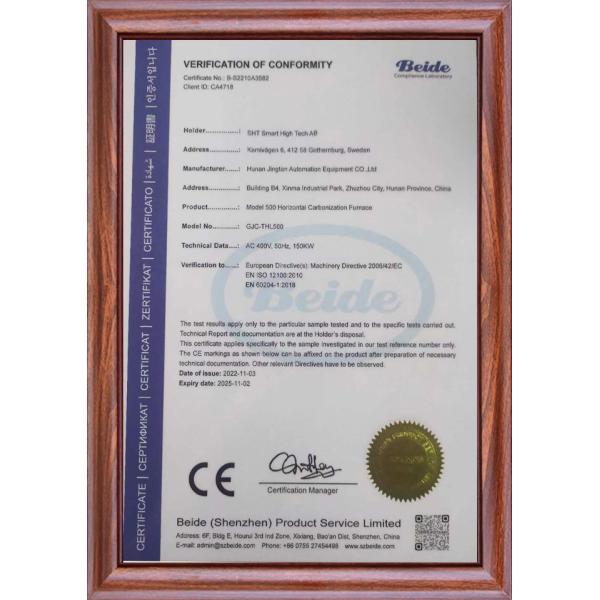

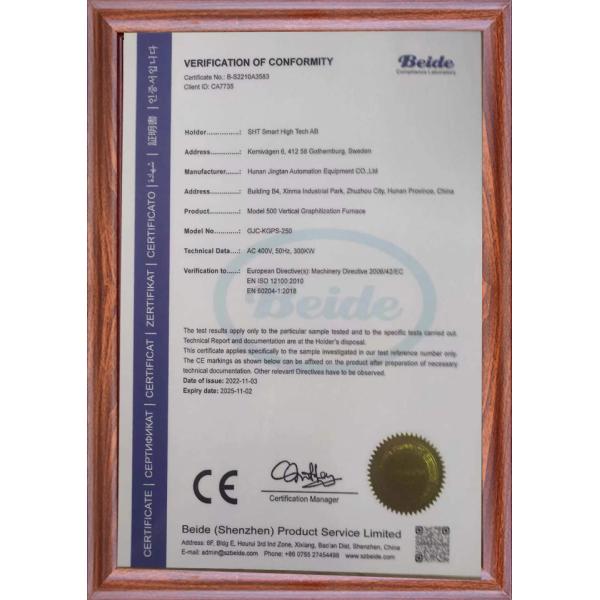

We have the ISO9001:2015 quanlity management certificates and CE certificates for graphitization furnaces and carbonization furnaces. We also have the patents for graphitization furnace, sintering furnace, carbonization furnaces, etc.

Production process

Customer Photos

Our logistics system is all around the world.

Customer cooperation cases:

FAQ

Are you a factory or trading company?

Q: Are you a factory or trading company?

A:Yes,we are China leading high-temperature vacuum furnace manufacturer for 10 years.

Do you have customization or OEM service?

Q: Do you have customization or OEM service??

A:Yes,we have powerful R&D team and high-tech equipment.So we can not only supply the regular model,but also the customizable furnace as the repuirment of our clients.

What's your advantages?

Q:What's your advantages?

A:Quick response to your enquiry

High quality control

Stable supply chain in the domestic maket

Timely delivery

Excellent after-sales service,we can dispatch our engineer to the customer city for installation and debugging.
